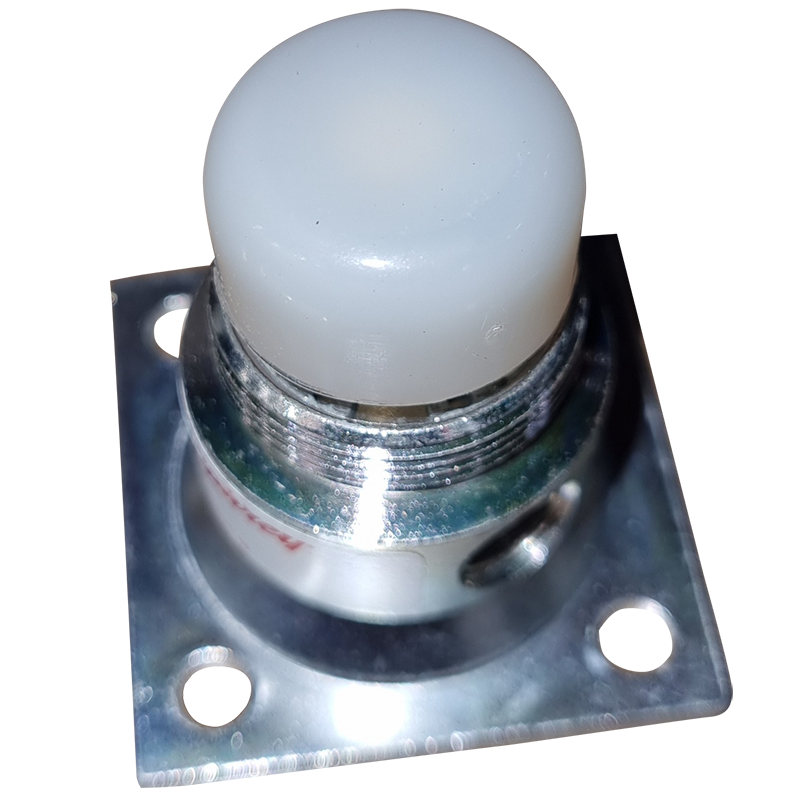

AFP1006-4
Humphrey Valve (125P 3 10 21 40)
| Media | Air, Inert Gas | ||||
| Valve Function | Normally closed | ||||
| Piping Type | Inline, Direct piping | ||||
| Port Size | 1/8 NPSF | ||||
| Number of Ports | 3 ports | ||||
| Number of Positions | 2 positions | ||||
| Options Included | Mounting base | ||||
| Approx Size (in) HxWxD | 1.74 x 1.18 DIA | ||||
| Type of Operation | Pushbutton | ||||
| Flow - SCFM @ 100 psig | 22 | ||||
| Flow - LPM @ 6.9 bar | 623 | ||||
| ESEOD (orifice) - in (mm) | 0.129 (3.28) | ||||
| Flow Coefficient (Cv) | 0.30 | ||||
| Lubrication | Not Required | ||||
| Pressure Range (psi) | 0-125 | ||||
| At Valved Pressure of: Force to Actuate (lbs): |
| ||||
| Ambient Temperature Range (⁰F) | -20~225 | ||||
| Wetted Materials | Zinc plated steel, Brass, Buna N | ||||
| Weight (oz) | 4.0 |
