CUSTOM MADE PANEL FILTER

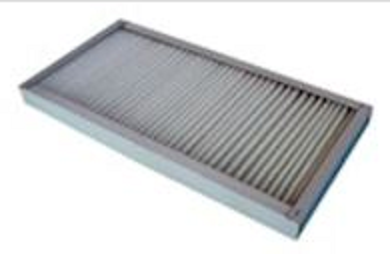

280MMx475MMx45MM

P034015-016-190 LORAM DUST COLLECTOR

PANEL FILTER STEEL FRAME (395X495X48)

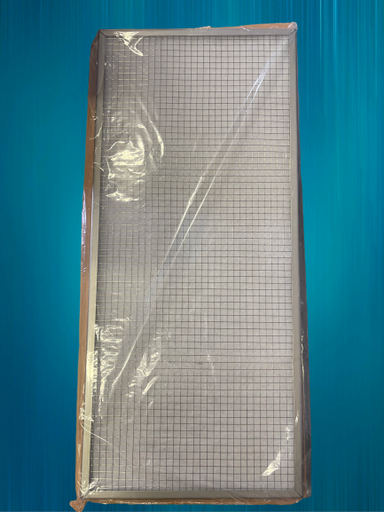

Stainless Steel Panel 930mm x 415mm x 23mm

Aluminium Panel 930mm x 415mm x 23mm

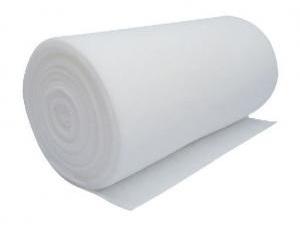

FILTER MEDIA WHITE SPRAY BOOTH/INLET AIR G4 DISPOSABLE (2100 X 20M PER ROLL) (15-18MM THICK)

25U Felt element Air Filter (250mm L x 320mm OD x 240mm ID)

Spunbonded Polyester Element Dust Collector
676 L x 323 OD x 211 ID x 14 Bolt Hole

Element Air Filter (544mm L x 161mm OD)

DUST COLLECTOR (Clark 1212891)
773mm overall length, 340mm OD, 240mm ID, open both ends, gasket on one side, inner perf.

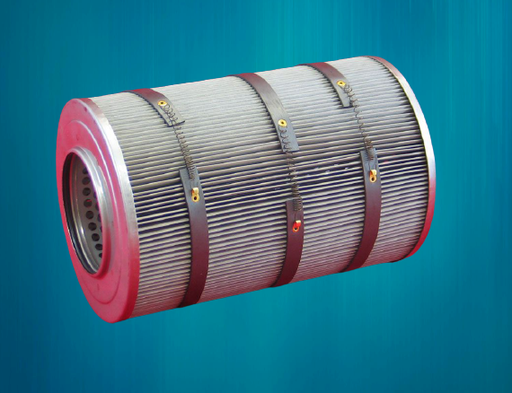

Hydraulic Filter (With Magnets) 64101672

DUST COLLECTOR
560mm overall length, 320mm OD, 190mm ID, inner screen, 15mm bolt hole

Spunbonded Polyester Element Dust Collector
360 L x 497 OD x 355 ID
filter efficiency is 99% @ 2-5 micron

Vacuum Cartridge, 25u felt 3-ply element (Open Both Ends)
Length = 360mm including gasket
Outside Diameter = 196mm
Inside Diameter = 120mm
Inside Diameter = 13.5mm

Vacuum Cartridge, Spunbonded polyester element (Open Both Ends)
Length = 360mm including gasket
Outside Diameter = 196mm
Inside Diameter = 120mm
Inside Diameter = 13.5mm

Vacuum Cartridge, 25u felt 3-ply element, 13.5mm bolt hole (Closed One End)

Vacuum Cartridge, Spunbonded polyester element, 13.5mm bolt hole (Closed One End)

AIR FILTER

Filter Fan (400mm dia, 0.37kW, 1440rpm, 415V, 1025L/sec)
