FS-2-BSPT
Vane Paddle Flow Switch 1" BSPT
Terms and Conditions
*Ships within 5 Business Days
**FOR ALL URGENT ORDERS PLEASE CONTACT THE SALES TEAM**

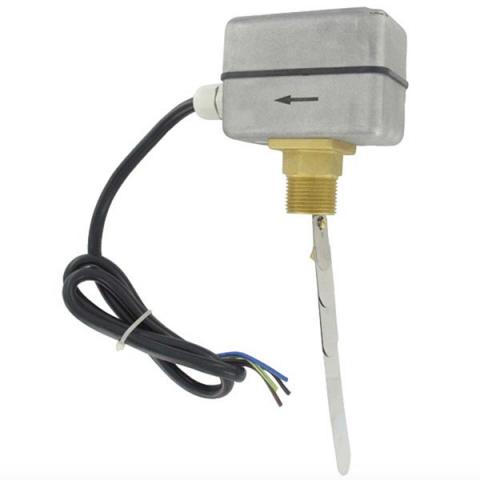

Vane Paddle Flow Switch 1" BSPT
Wetted Materials: Bellow: Tin-bronze;
Vane: SS; Body: Forged brass.
Temperature Limit: 110°C.
Pressure Limit: 145 psig (10 bar).
Enclosure Rating: NEMA 4 (IP64).
Switch Type: SPDT snap switch.
Electrical Rating: 10 A res, 3 A ind @ 250 VAC.
Process Connection: 1 BSPT
Set Point Adjustment: Four vane
combinations and an adjustment screw.
Enclosure: Die-cast aluminum alloy.
Weight: 0.8 kg
Agency Approvals: CE.
