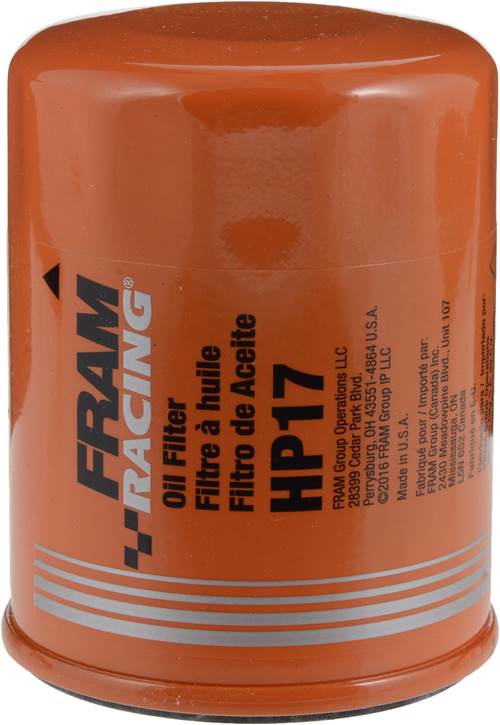

HP17
FRAM HP17
Terms and Conditions
*Ships within 5 Business Days
**FOR ALL URGENT ORDERS PLEASE CONTACT THE SALES TEAM**
FRAM Racing® filters are designed with a heavy-gauge tapping plate and an extra-thick* steel can that is able to withstand the high pressure flexing caused by demanding driving conditions. A spiral-shaped center tube provides protection against collapse, and tough steel end caps add even more durability. A screen-over 22psi filter bypass valve provides additional protection against larger contaminants.**
- Low-restriction synthetic blend racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection**
- Silicone anti-drain back valve.
- Recommended maximum oil flow: 10-18gpm, depending on model***
- Maximum burst pressure: 350-500psi, depending on model***
- Maximum operating pressure: 200psi on all models***
- Compatible with all oil types, this filter is optimized for racing and high-performance street cars
PRODUCT SPECS
| Height | 3.35 |
| Inside Diameter | 20mmx1.5mm Th'd |
| Outside Diameter | 2.64 |
| Anti-Drainback Valve | YES |
| By-Pass Valve Setting | 16-28 |
| Turning Specification | 3/4 |
| Base Gasket I.D. | 2.200 |
| Base Gasket O.D. | 2.337 |
| Base Gasket Thickness | .200 |
| Buyers Guide | PH6607, PH7317 Honda B16, B18, H22, Nissan SRDT, VQ35, VQ37 Applications |
